Product Overview

The SyscomX RG59 + Power Siamese Cable is a high-performance coaxial cable with dual power conductors integrated in a single jacket.

It is designed for professional CCTV installations, supporting analog and HD video transmission while also delivering power over long distances.

This makes it ideal for residential, commercial, and industrial security applications.

---

Key Features

• Supports HD-CVI / HD-AHD / HD-TVI cameras

• Compatible with analog and digital CCTV systems

• Suitable for CCTV, power, and PTZ control applications

• Sweep tested up to 3 GHz

• Low attenuation for video and audio signals

• Dual inline power conductors for DC & AC

• Eco-friendly packaging with meter marking

---

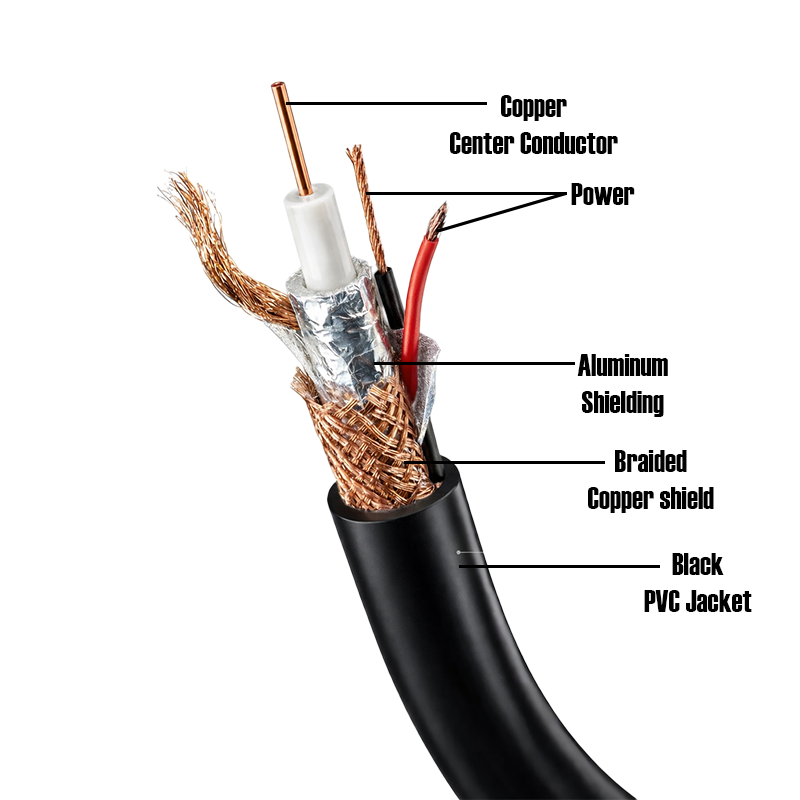

Technical Specifications

Coaxial Cable (RG59)

• Impedance: 75 Ohm

• Frequency Range: Up to 3 GHz

• Conductor Type: Solid Copper

• Shielding: Braided + Aluminum Foil

• Attenuation: Low Loss

• Signal Type: Composite and HD Analog Video

---

Power Cable

• Core Type: 2 Core

• Voltage Support: DC & AC

• Application: Camera Power Supply

• Configuration: Integrated Siamese

---

Physical Characteristics

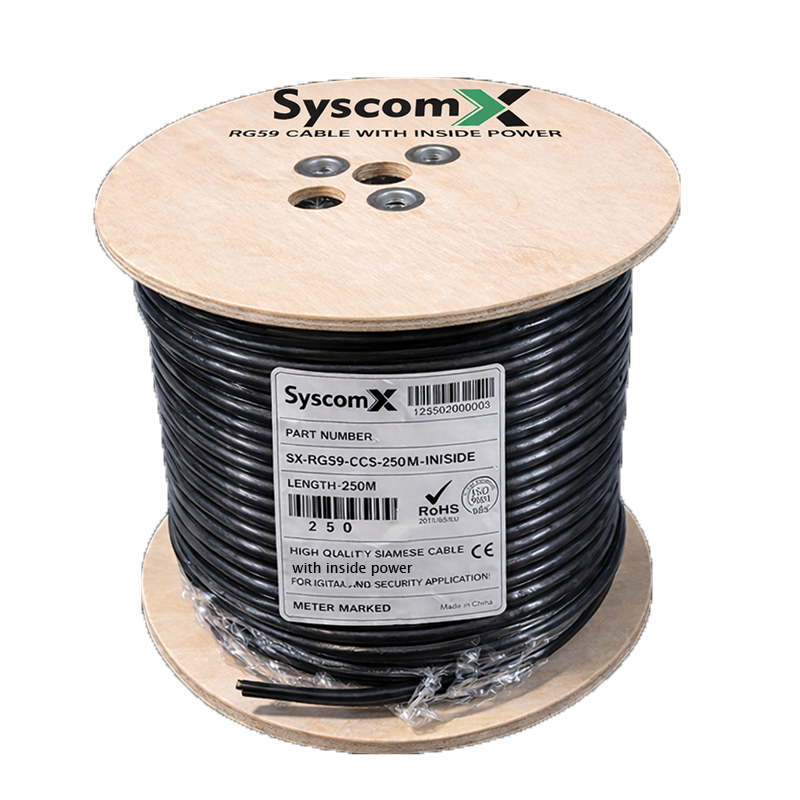

• Total Length: 250 Meters

• Cable Type: RG59 + Power (Siamese)

• Color: Black

• Meter Marking: Yes

• Packaging: Eco-Friendly Carton Box

---

Applications

• Residential CCTV systems

• Commercial surveillance systems

• Industrial monitoring setups

• PTZ camera installations

• Long-distance camera deployments
