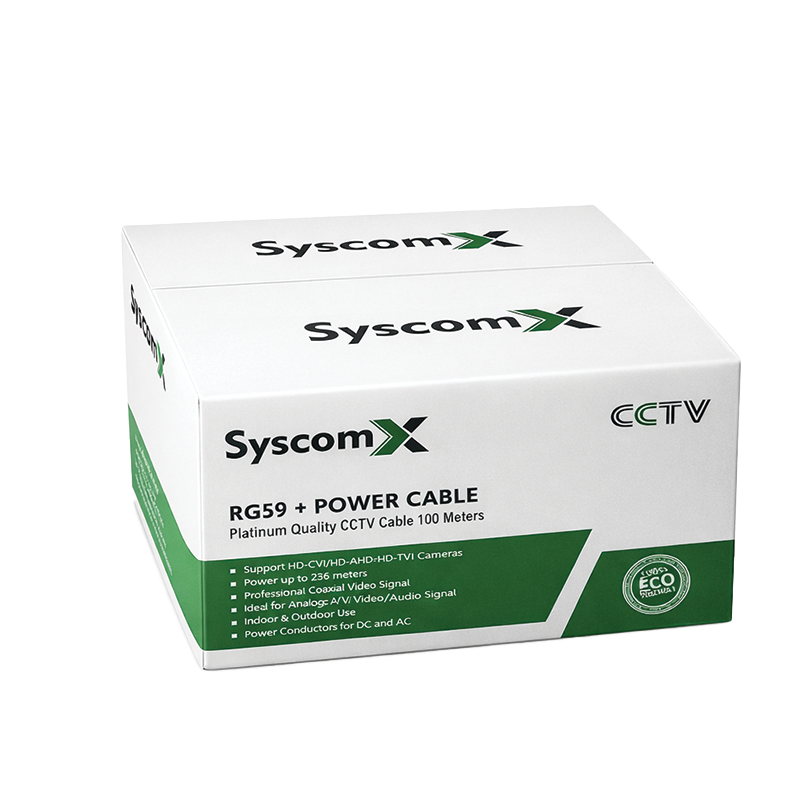

Product Overview
The SyscomX RG59 + Power Siamese Cable is designed for CCTV systems. It combines video transmission and power in one cable, allowing easier installation and reliable long-distance transmission for surveillance cameras.
Key Features
-
High-quality RG59 coaxial cable
-
Integrated Siamese power cable (2-core)
-
Supports:
-
CCTV
-
AHD
-
TVI
-
CVI
-
Analog systems
-
-
75 Ohm impedance for stable video quality
-
Braided + Aluminum Foil shielding
-
Suitable for indoor and outdoor installation
-
Meter marking for easy installation
-
CE & RoHS certified
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | RG59 + Power |
| Impedance | 75 Ohm |
| Frequency Range | Up to 3 GHz |

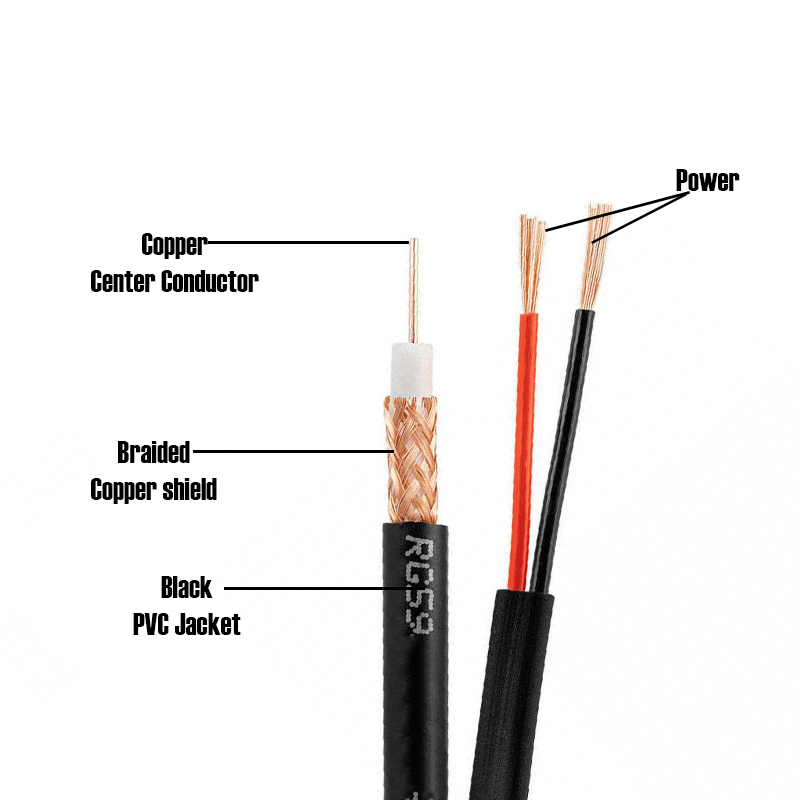

| Center Conductor | 0.81 mm Solid Copper |
| Shielding | Braided + Aluminum Foil |
| Power Cores | 2-Core (18 AWG) – Red & Black |
| Jacket Material | Black PVC |
| Meter Marking | Yes |
Attenuation (per 100 m)
| Frequency | Attenuation |
|---|---|
| 55 MHz | 15.4 dB |
| 211 MHz | 15.0 dB |
| 300 MHz | 19.3 dB |
Applications
-
CCTV Security Systems
-
HD-CVI / AHD / TVI / CVI Cameras
-
Analog Cameras
-
Residential installations
-
Commercial surveillance systems
Physical Characteristics
| Item | Specification |
|---|---|
| Cable Length | 100 meters |
| Total Reel Length | 250 meters |
| Cable Type | RG59 + Power |
| Jacket | Black PVC |
| Meter Marking | Yes |
| Packaging | Wooden Reel |
