SyscomX MINI DC UPS SX-UPS 12000
Compact Backup Power Supply for Networking & CCTV Devices
The SyscomX MINI DC UPS SX-UPS 12000 is a compact backup power solution designed to keep routers, modems, Wi-Fi devices, CCTV cameras and low-power PoE equipment running during power interruptions. It combines a built-in lithium battery with multiple DC outputs, USB output and PoE output to provide stable emergency power for home, office and surveillance applications.
1. Product Instructions
- Built-in lithium battery.
- Microprocessor controller guarantees high reliability.
- Auto start when plugged in.
- Manual power off switch.
- Overload and short-circuit protection.
- Over-charge and over-discharge protection.
- User-friendly multi-LED status indicators.
- 5V USB / DC output.
- 9V and 12V DC output.
- Suitable for router, modem, wireless phone and CCTV applications.
2. Power Outputs
- USB / DC1 Output: 5Vdc / 2.4A
- DC2 Output: 9Vdc / 1.8A
- DC3 Output: 12Vdc / 1.35A
- PoE Output: 15Vdc / 1A or 24Vdc / 0.63A
- Total Output Power: ≤ 18W
- AC Input: 100–240Vac / 50–60Hz
3. Key Features
- Compact desktop design for home and office use.
- Designed for routers, modems, Wi-Fi devices and CCTV cameras.
- Multiple output ports for different devices.
- PoE output for compatible network equipment.
- Universal AC input from 100V to 240V.
- Built-in protection system for safer operation.
- LED indicators for battery and power status.
- Lightweight and easy to install.
4. Applications
- Router
- Modem
- Wi-Fi device
- CCTV camera
- Antenna
- Phone
- PS4
- X-Box
5. Technical Specifications
| Item | Specification |
|---|---|
| Model | SX-UPS 12000 |
| Rated Working Voltage | 100–240Vac / 50–60Hz |
| Output Power Max. | 18W |
| USB / DC1 Output Interface | 5Vdc / 2.4A |
| DC2 Output Interface | 9Vdc / 1.8A |
| DC3 Output Interface | 12Vdc / 1.35A |
| PoE Output Interface | 15Vdc / 1A or 24Vdc / 0.63A |
| Battery Type | Lithium Battery |
| QTY & Capacity of Battery | 3000mAh × 4 |
| Total Capacity | 12000mAh |
| Unit Dimension | 176 × 110 × 34 mm |
| Net Weight | 0.41 kg |
| Protection | Overload, short-circuit, over-charge and over-discharge protection |

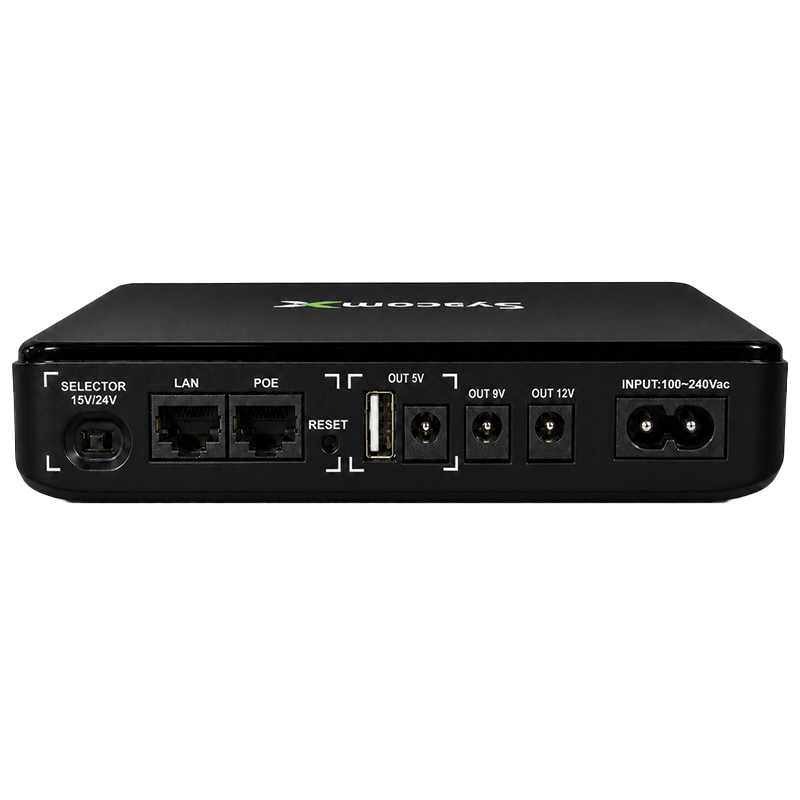

6. Port / Interface Function
| Port / Interface | Function | Rating |
|---|---|---|
| AC Input | Main charging / power input | 100–240Vac |
| USB / DC1 | Output for 5V devices | 5V / 2.4A |
| DC2 | Output for 9V devices | 9V / 1.8A |
| DC3 | Output for 12V devices | 12V / 1.35A |
| PoE | Output for compatible PoE devices | 15V / 1A or 24V / 0.63A |
7. Product Summary
The SyscomX SX-UPS 12000 is an ideal mini DC UPS for keeping essential network and security devices powered during electricity outages. With 12000mAh capacity, multiple DC outputs, USB output, and PoE support, it is a practical backup power solution for routers, modems, wireless devices and CCTV systems.
SyscomX Advanced Networking Solutions
Web: www.syscomx.net
