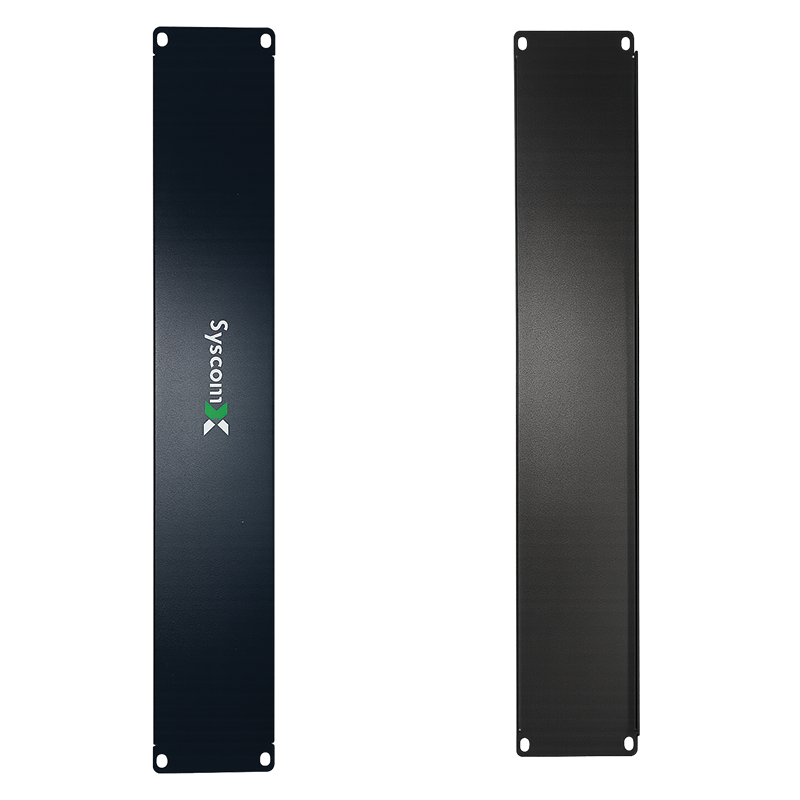

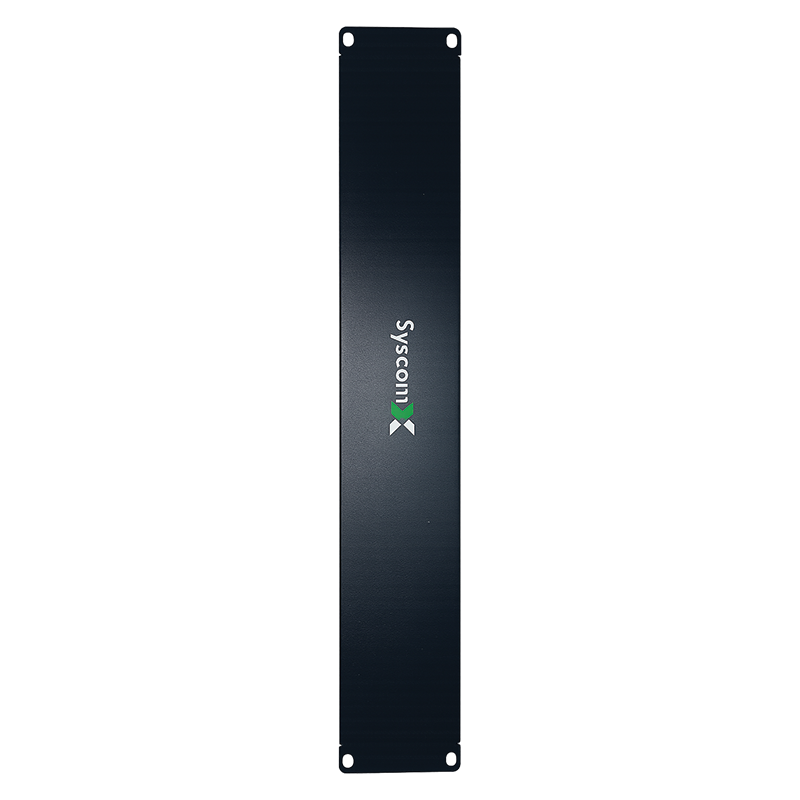

yscomX 2U Blanking / Close Panel
The SyscomX 2U Close Panel is a heavy-duty airflow management solution designed to cover larger unused sections of a rack. It is double the height of a standard unit, providing a more rigid and seamless seal for high-density server environments and professional networking cabinets.
Technical Specifications
| Feature | Detailed Description |
| Brand | SyscomX |
| Product Name | 2U Blanking Close Panel |
| Model Number | SX-BP-02U |
| Height | 2U (3.50 inches / 88.9 mm) |
| Width | Standard 19” Rack Mount (EIA-310-D) |
| Material | Premium Cold Rolled Steel (SPCC) |
| Thickness | 1.5mm Enhanced Industrial Grade |
| Surface Finish | Electrostatic Matte Black Powder Coat |
| Mounting Type | Horizontal (4-Point Standard Mounting) |
Key Performance Features
-
Enhanced Thermal Blocking: The 2U Close Panel effectively seals larger gaps, preventing “Hot Air Recirculation” more efficiently than multiple smaller panels.
-
Increased Structural Support: Due to its 2U height and thicker 1.5mm steel, it acts as a stabilizing element for the rack’s vertical rails, reducing vibration.
-
Streamlined Appearance: Using 2U panels instead of two 1U panels creates a cleaner, more continuous surface on the rack’s face, hiding complex internal wiring.
-
Improved Airflow Pressure: Essential for maintaining static pressure in “Cold Aisle” containment systems, ensuring that fans work less and equipment stays cooler.
Applications
-
Large Data Centers: For sealing expansion slots in high-density server clusters.
-
Telecom Hubs: Providing a clean finish for ISP distribution racks.
-
A/V & Broadcasting: Covering large empty spaces in equipment racks to prevent dust ingress and maintain a sleek look.
Ordering & Logistics
-
Unit of Measure: Available in Single Units (1pc) or Contractor Packs (10 pcs).
-
Package Content: 1x SyscomX 2U Close Panel, 4x M6 Mounting Screws, 4x M6 Cage Nuts.
-
Warranty: Lifetime Structural Warranty.
